Asurmak CCP 35 m3

Askom 35 m3

High Performance Ready-Mixed Concrete Production

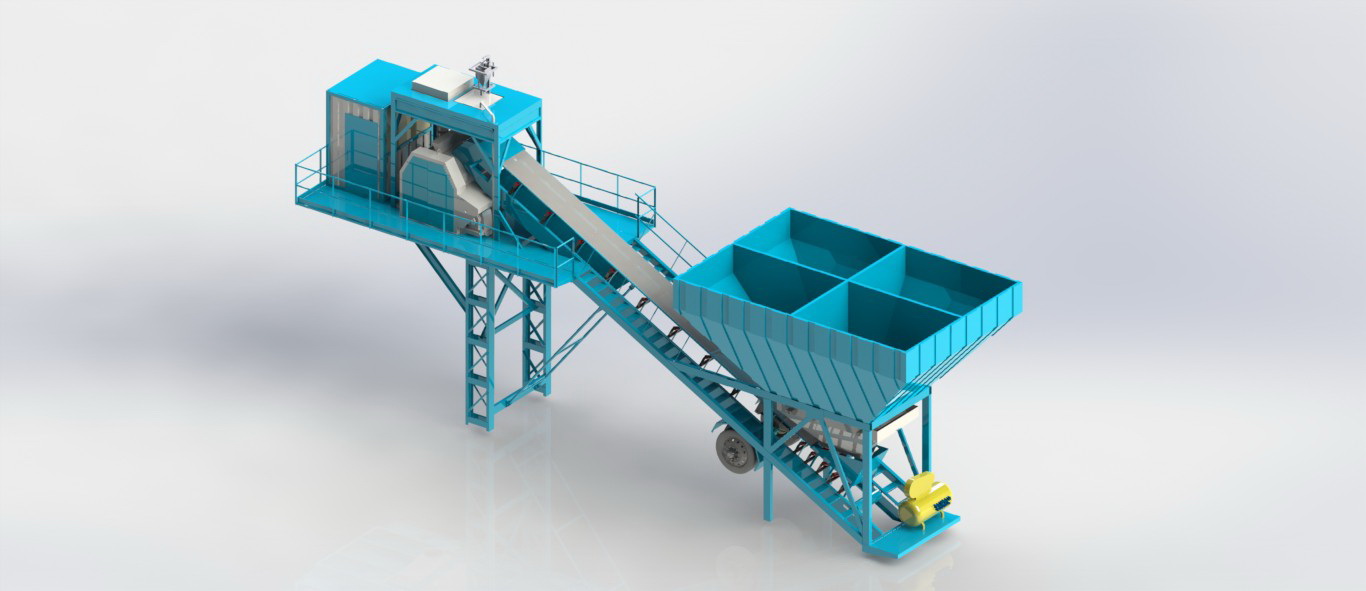

The compact concrete batching plant, which is used to produce very high performance ready-mixed concrete in narrow work spaces, produces concrete comfortably thanks to its stairs that move upwards. The compact concrete batching plant, which has the feature of producing 35 and 60 m3 of concrete per hour according to the needs of the enterprises, has an easy installation and transportation feature.

ASURMAK CCP-35 Centrale à Béton Compacte 30m³/heure
Spécifications Valeurs Unité
Capacité en béton de la centrale 30-35 m3/heure
Type de mélangeur Arbre unique Un arbre
Période de mélange 30 Secondes
Capacité de béton compacté du mélangeur 0.5 m3
Volume sec du mélangeur 0.75 m3
Puissance du moteur du mélangeur 1x18.5 kw
Trémies à agrégats 3 Compartiments
Capacité de la trémie à agrégats 3x15 m3
Capacité de pesée des agrégats 600x8000 mm
Pesage d'agrégats 1250 kg
Pesage du ciment 300 kg
Pesage de l'eau 200 Lt
Pesage d'additifs 30 kg
Total de l'énergie électrique 101 kw
Silo 100 Tonnes
Diamètre de la vis du silo à ciment 219 mm

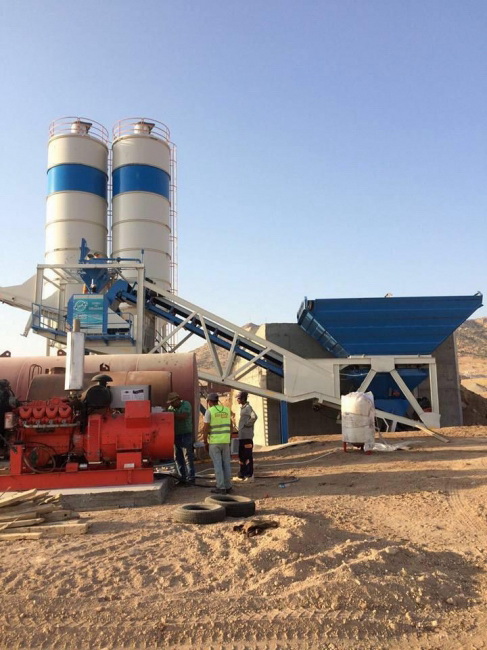

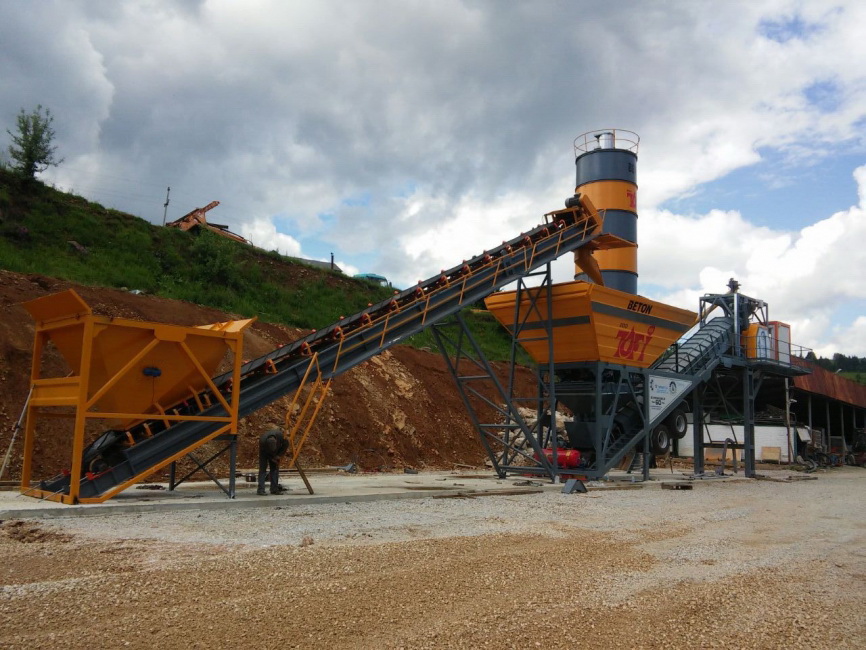

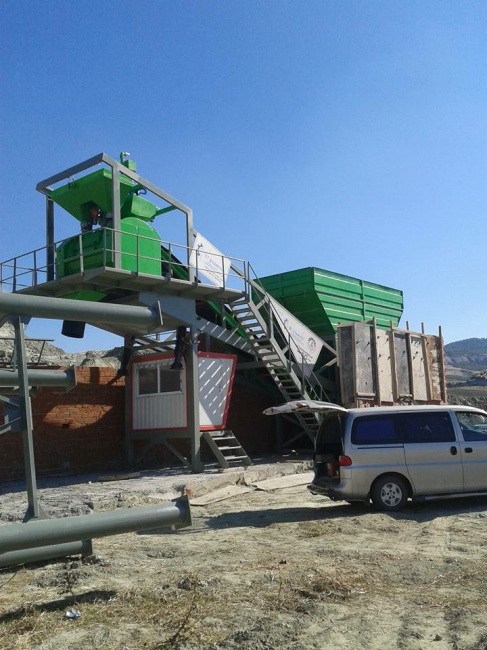

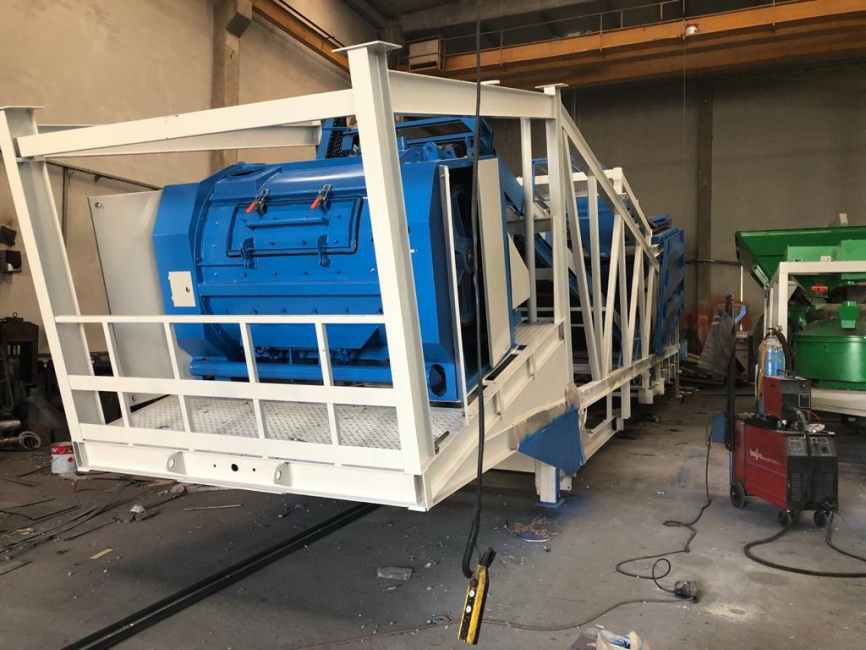

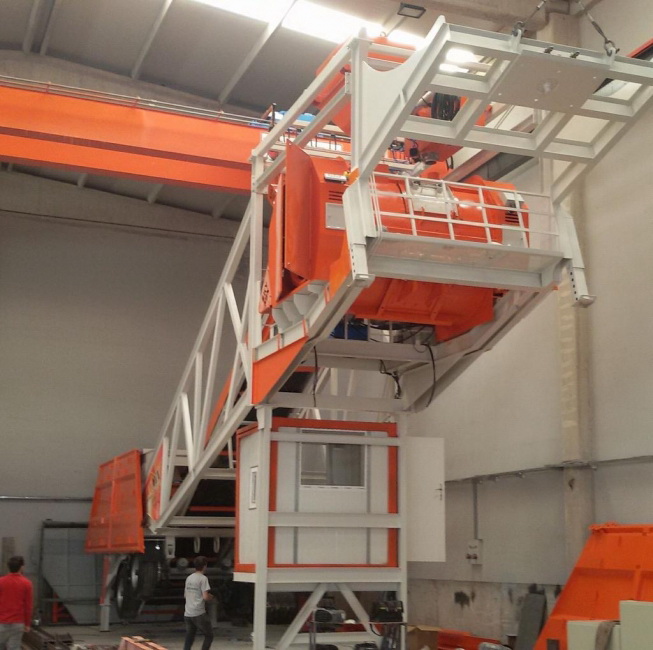

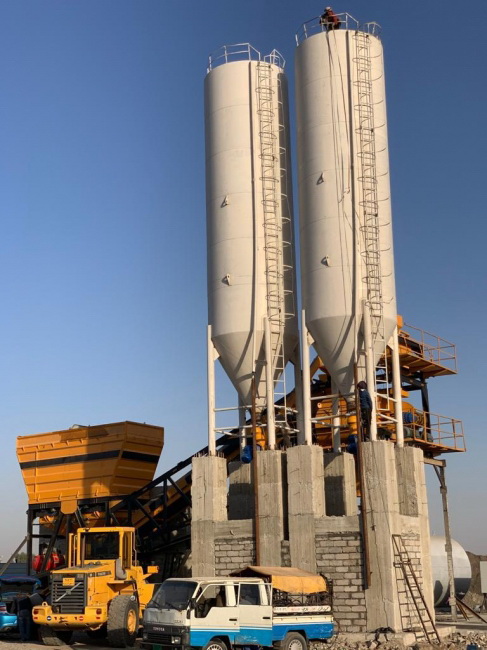

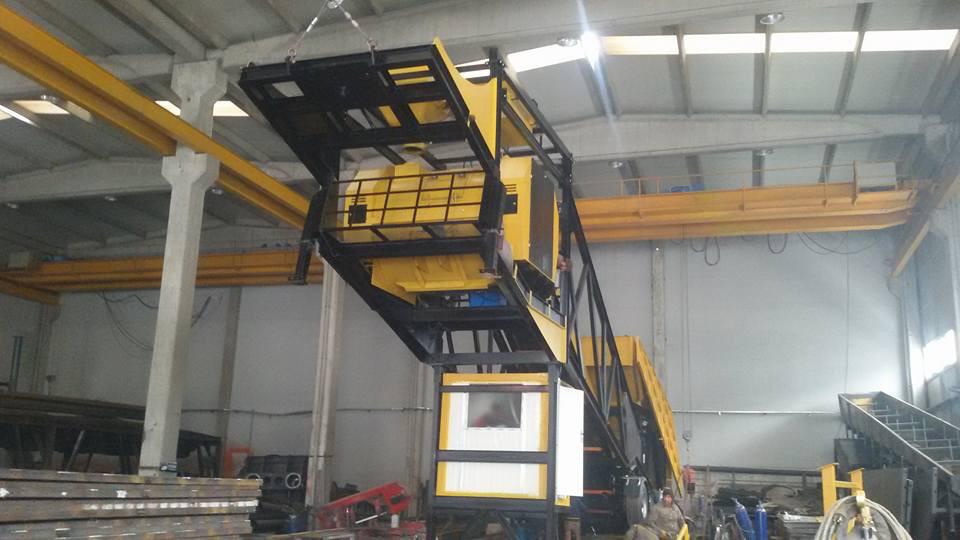

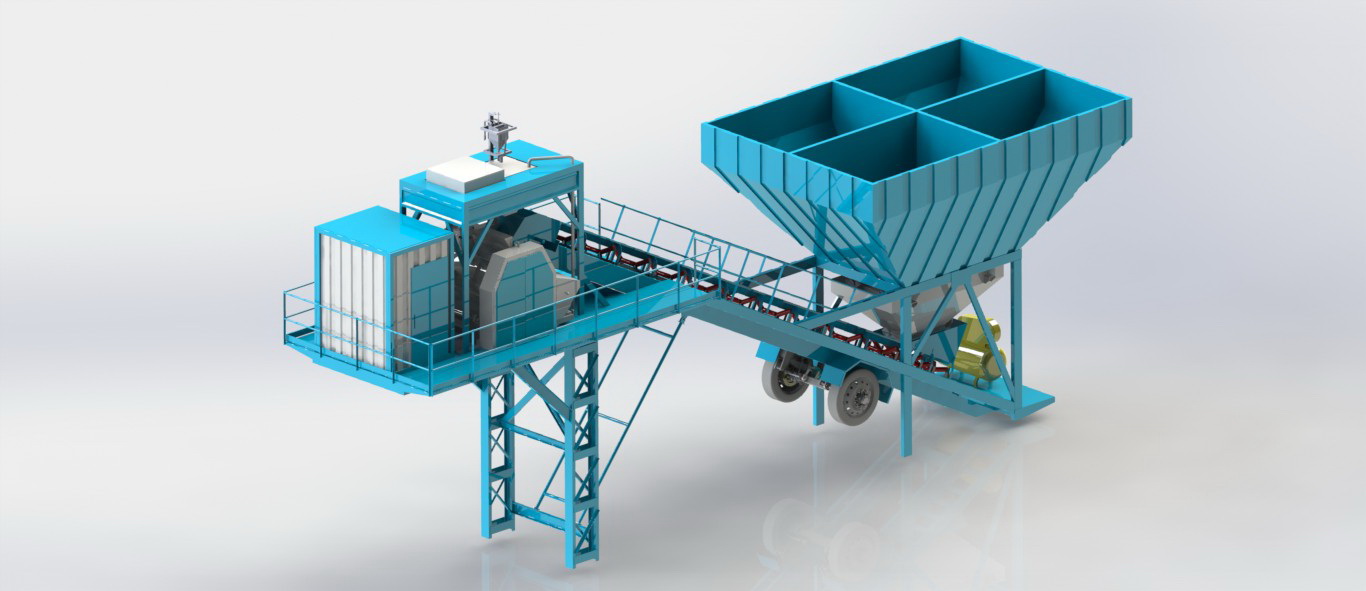

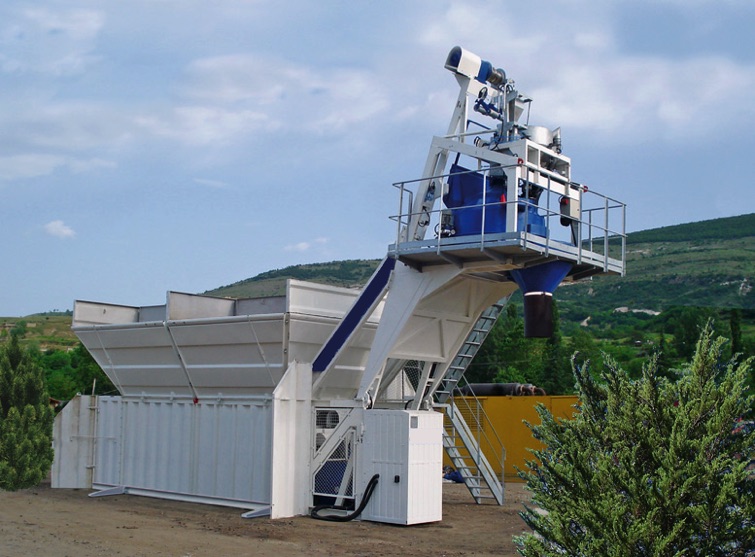

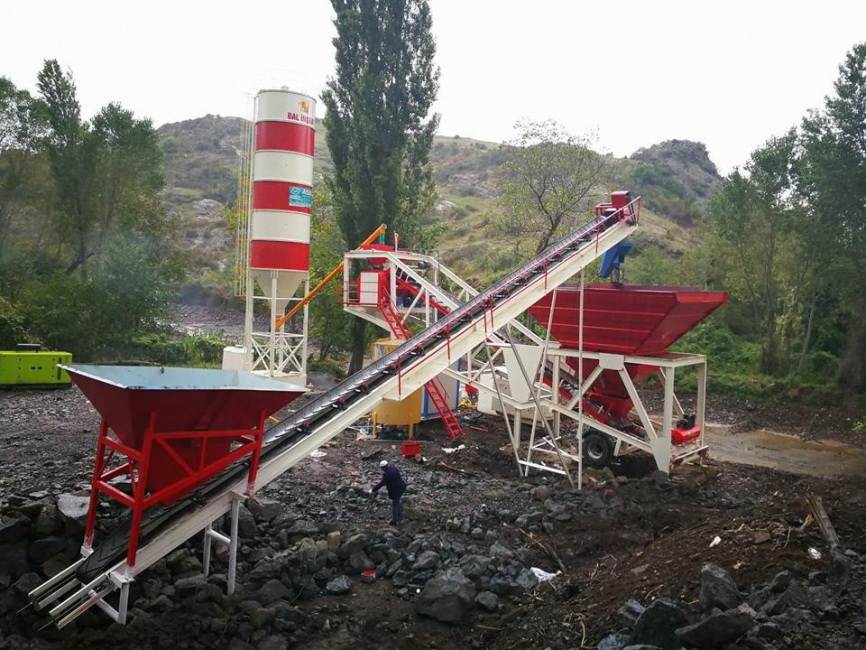

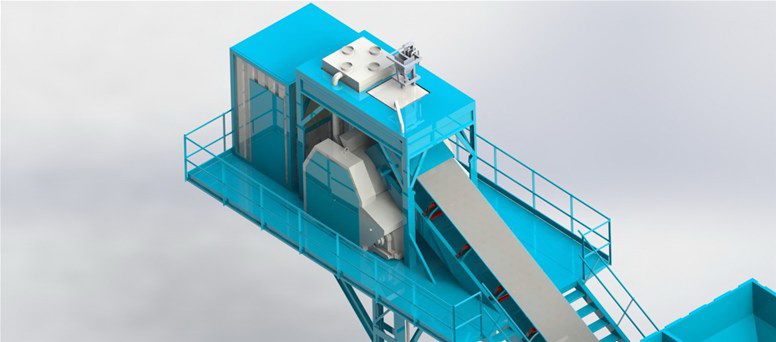

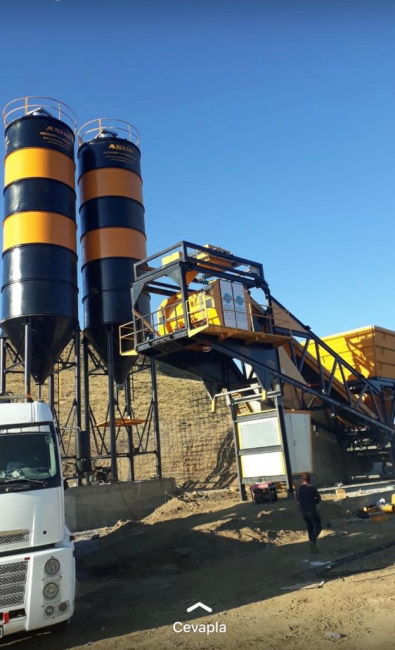

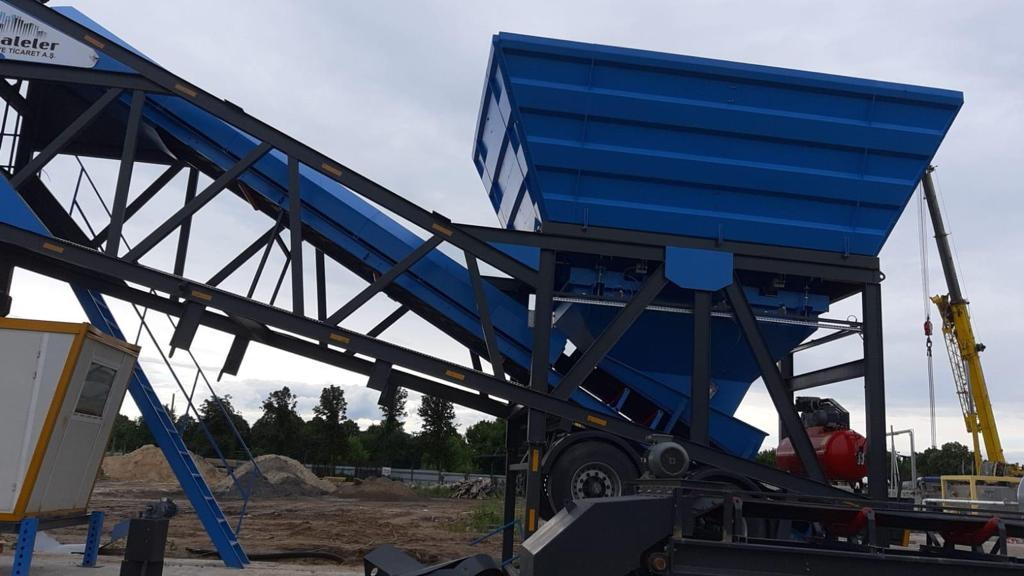

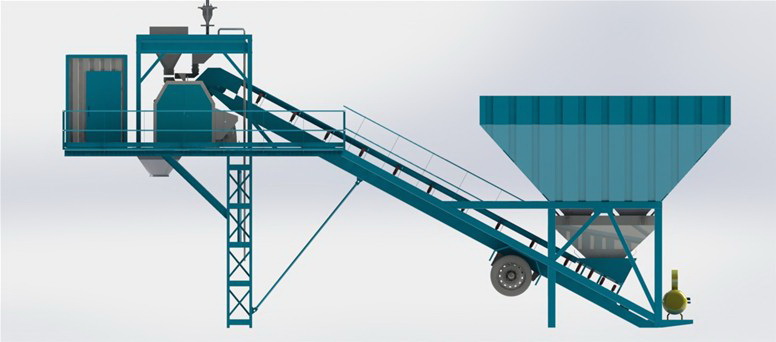

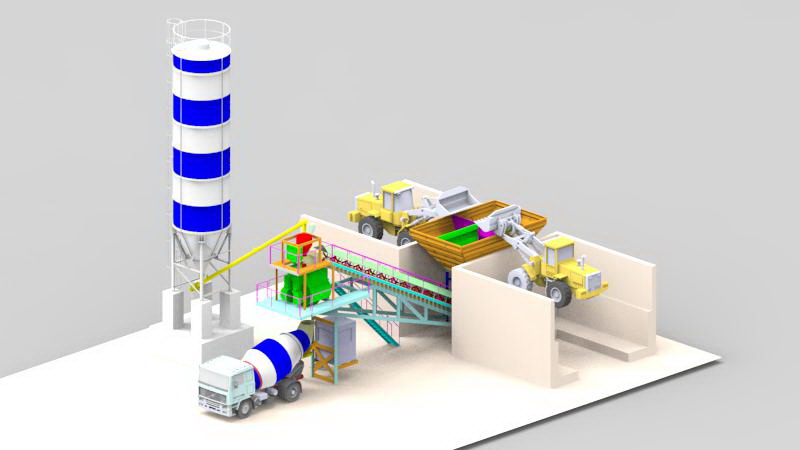

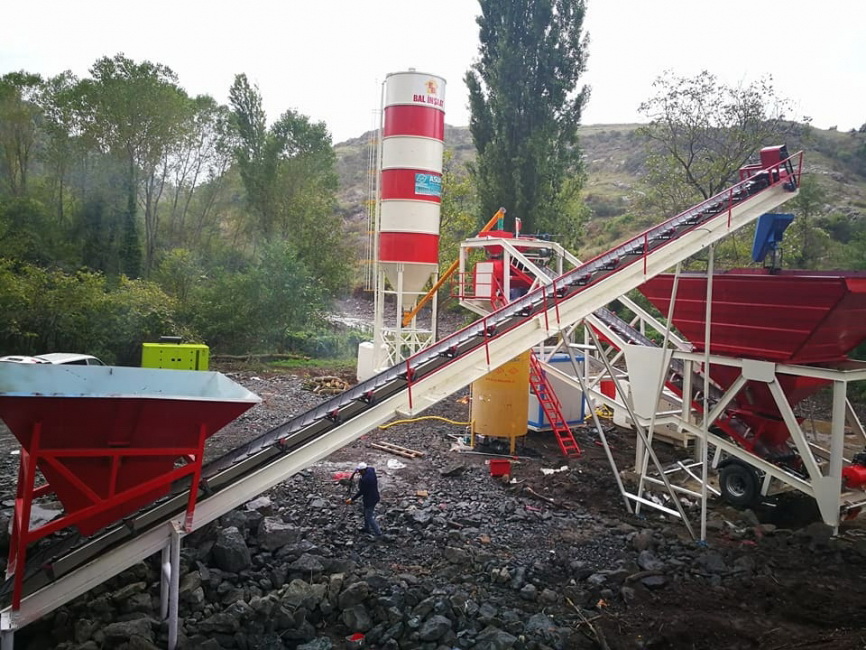

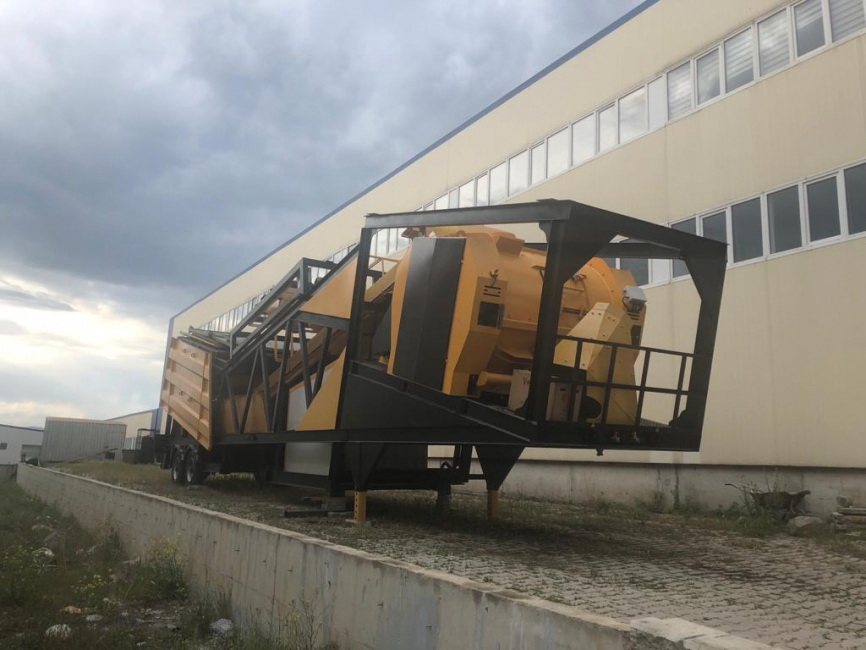

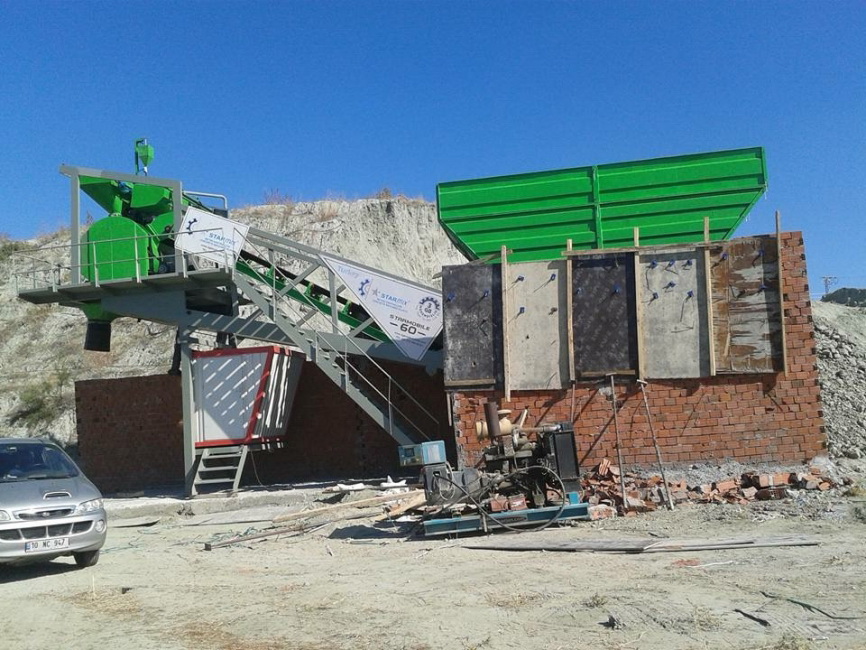

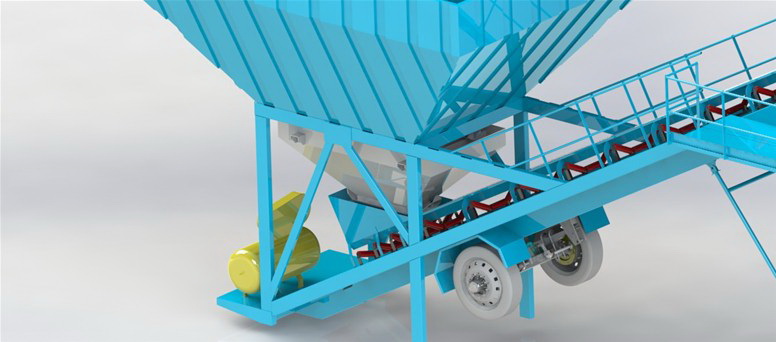

GALERIE
