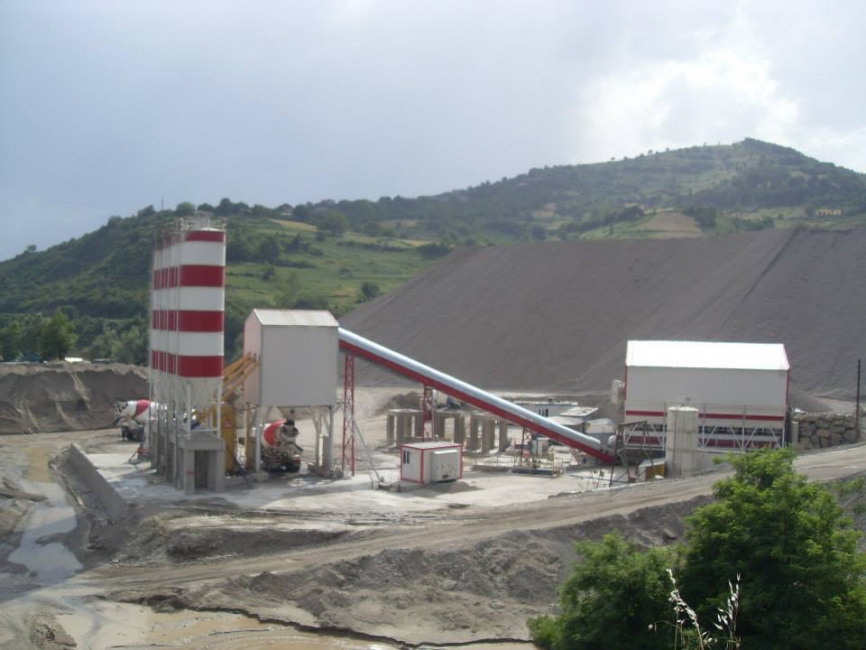

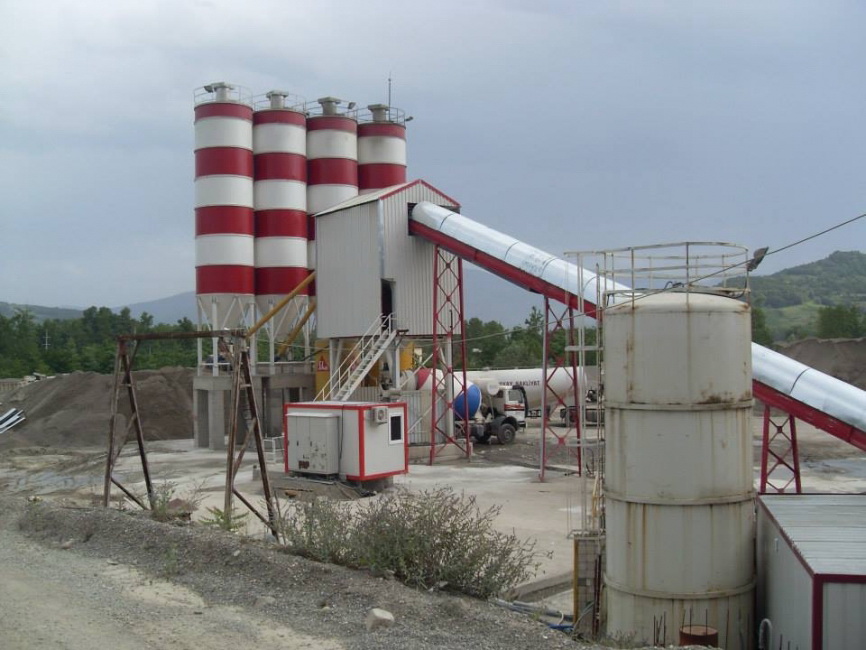

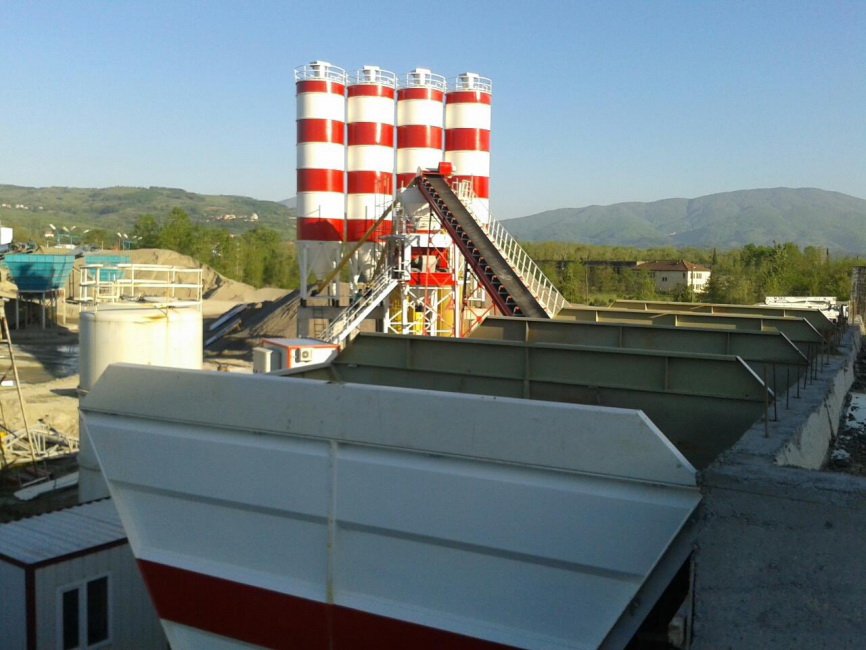

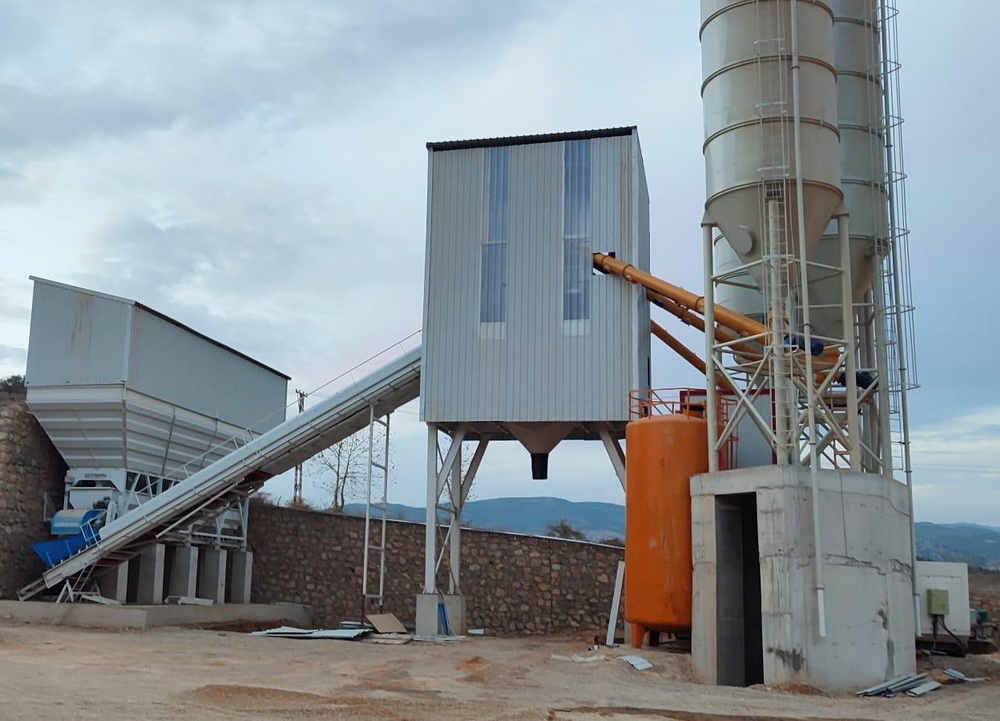

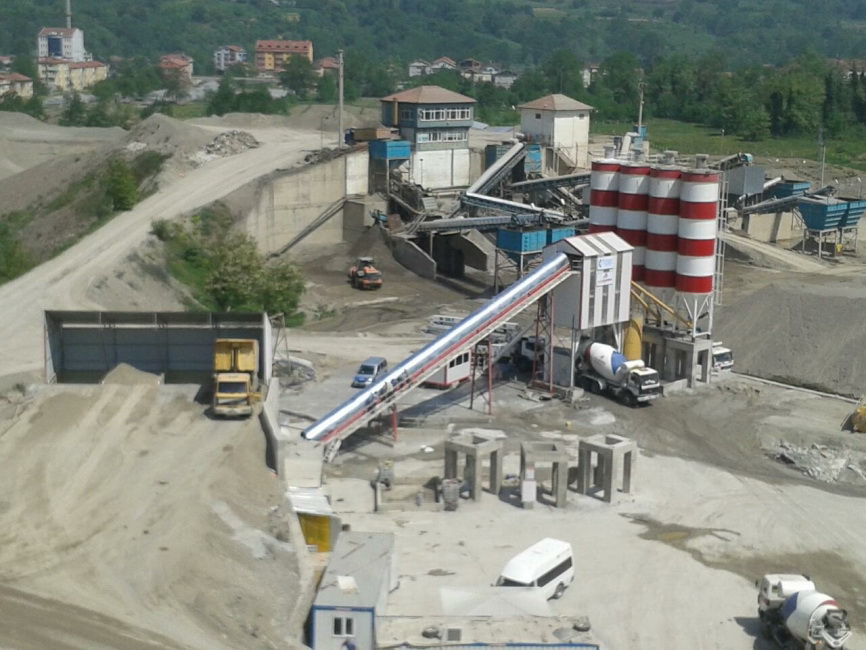

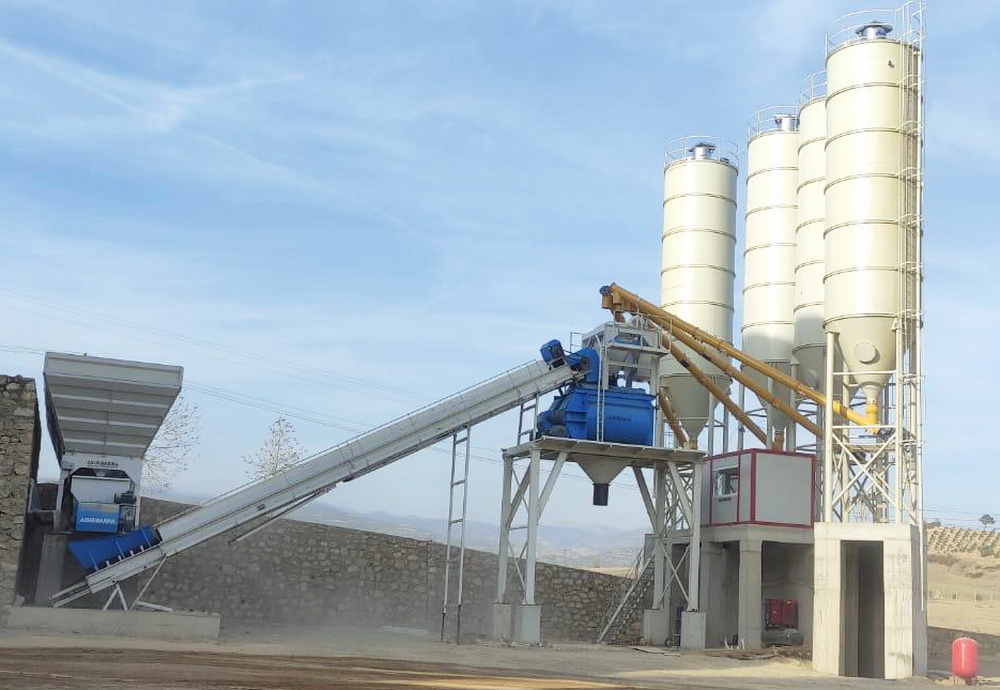

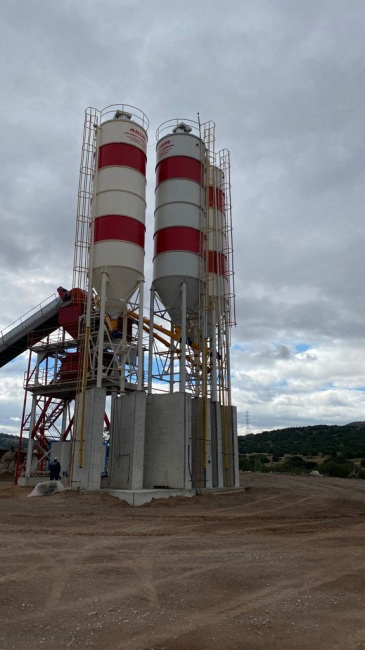

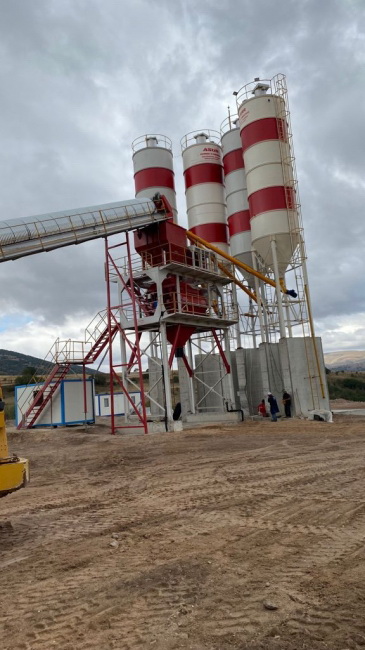

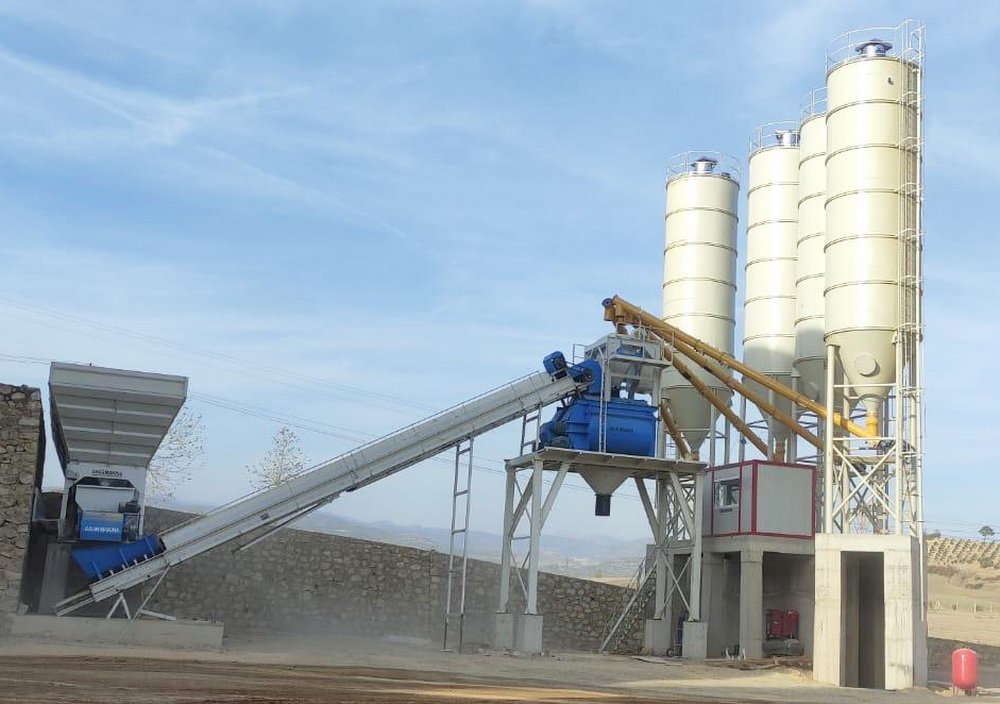

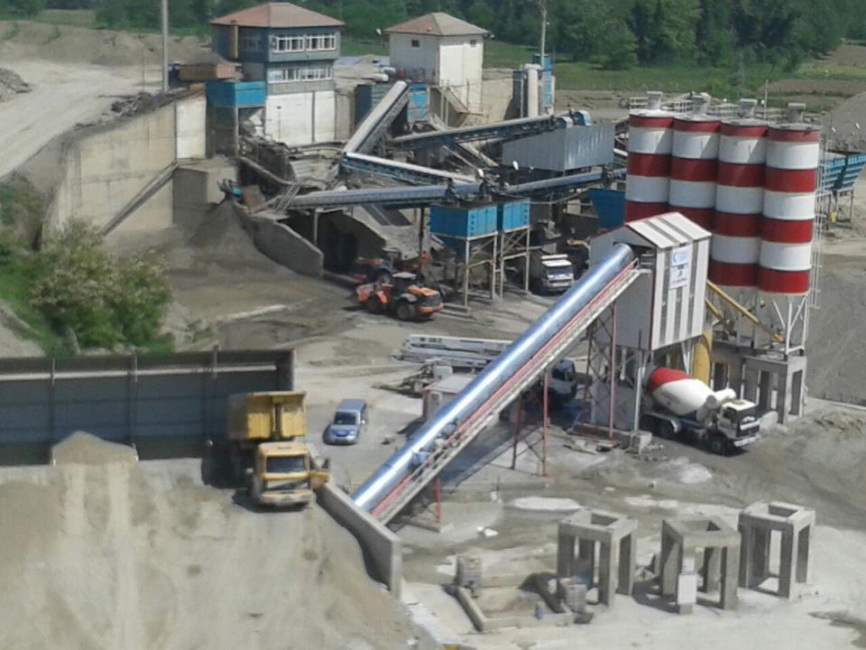

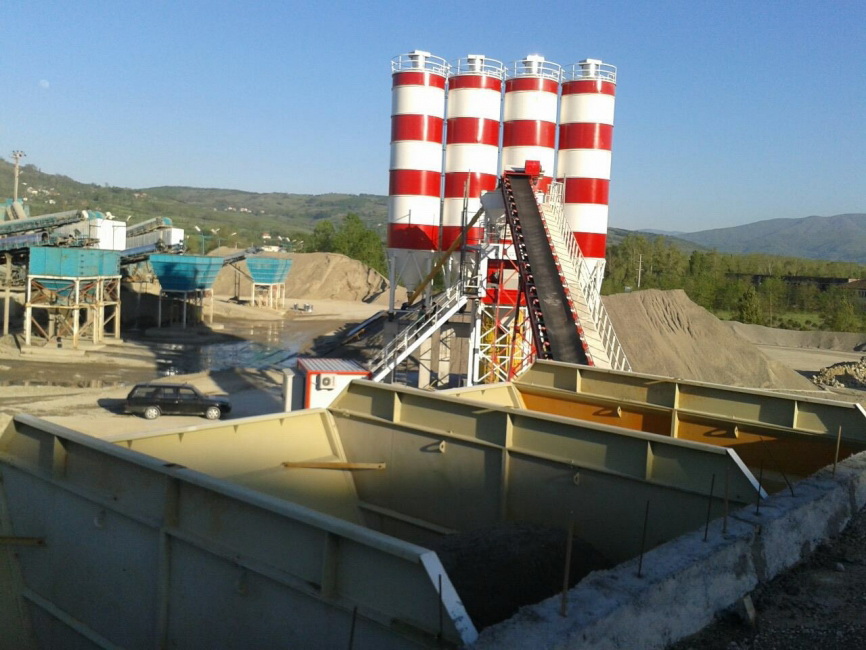

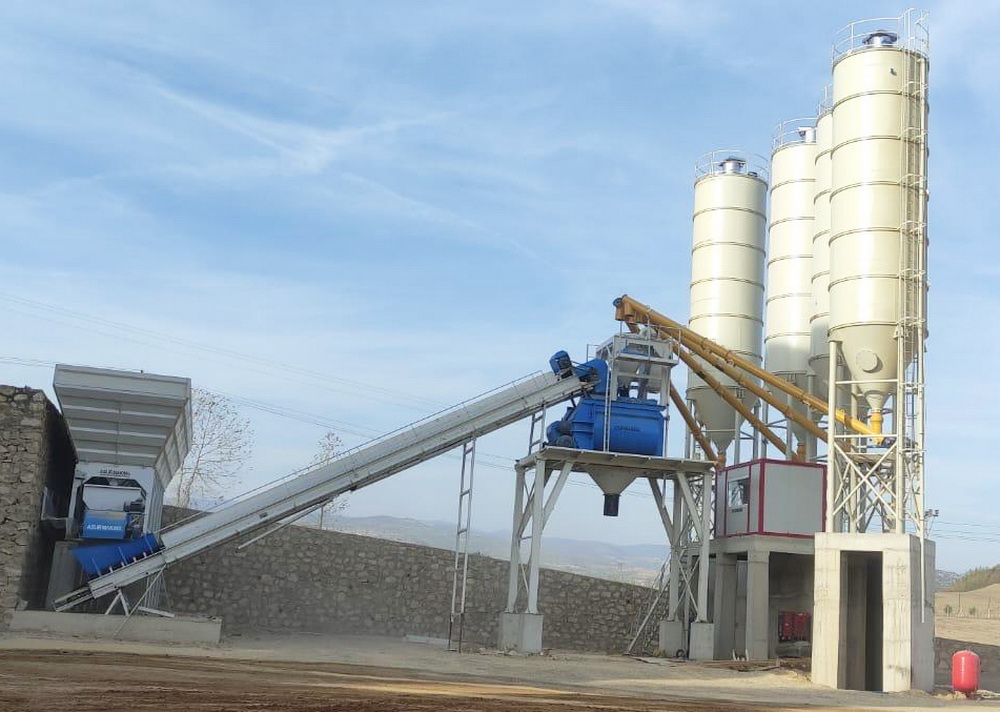

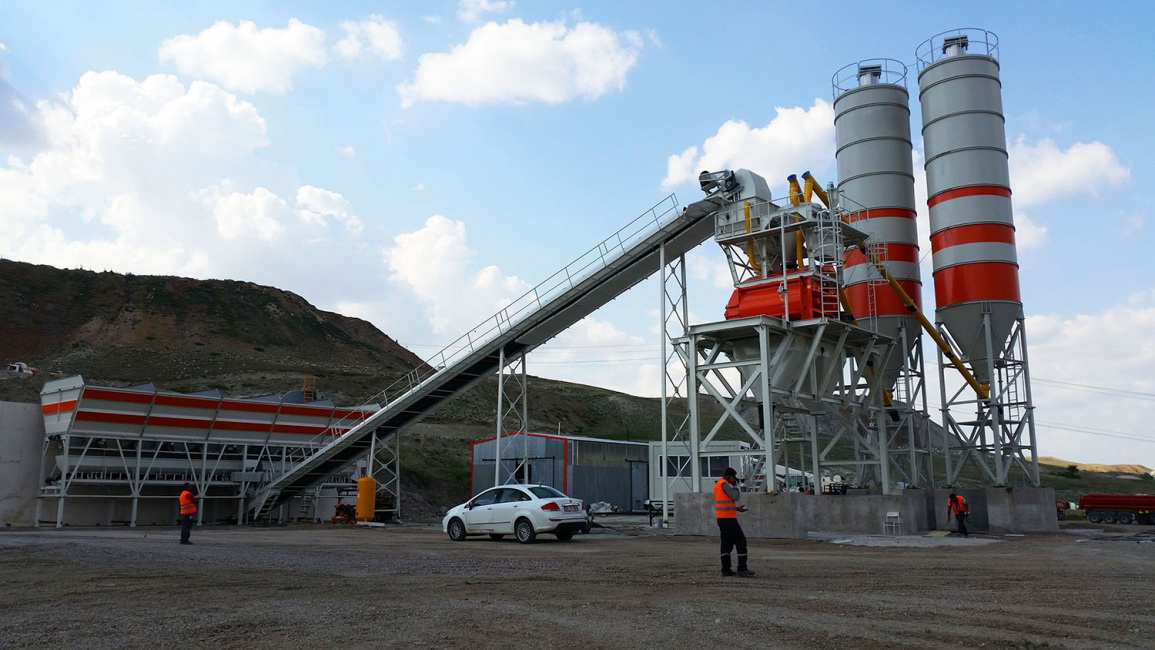

Stationary Concrete Batching Plant

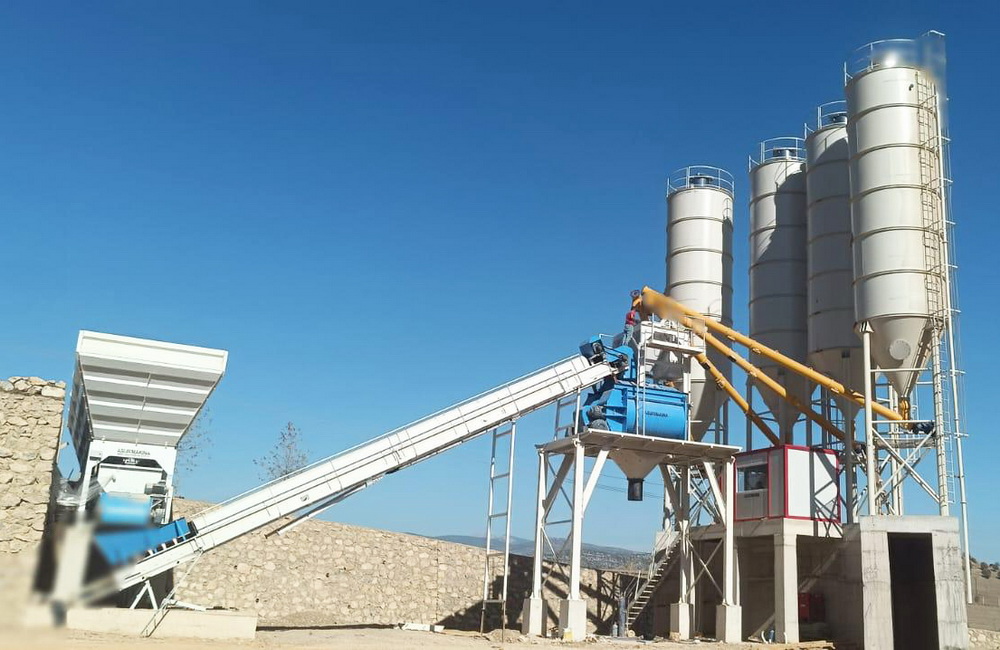

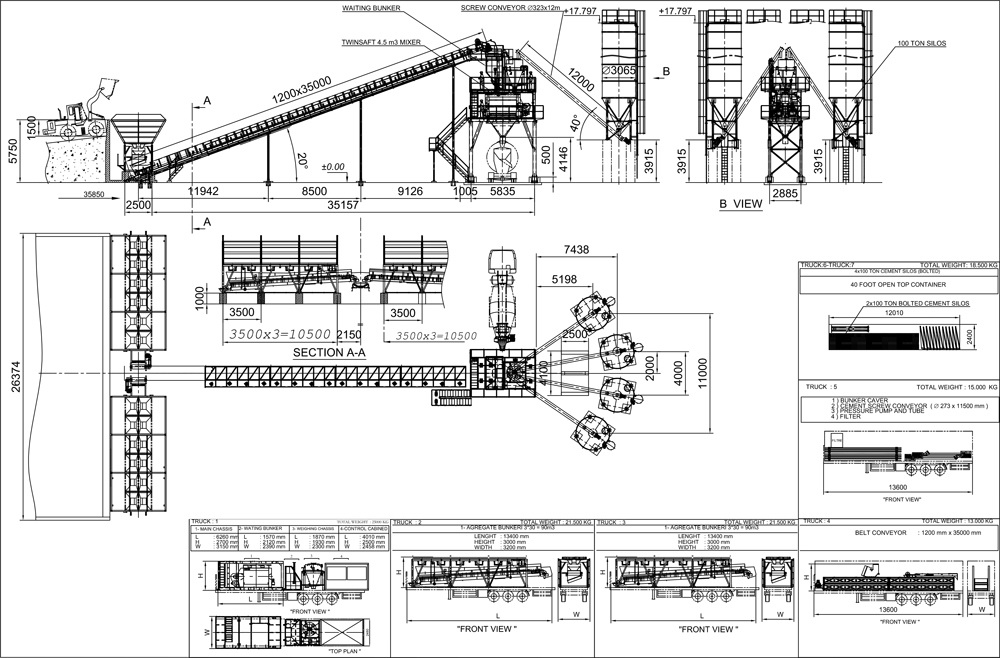

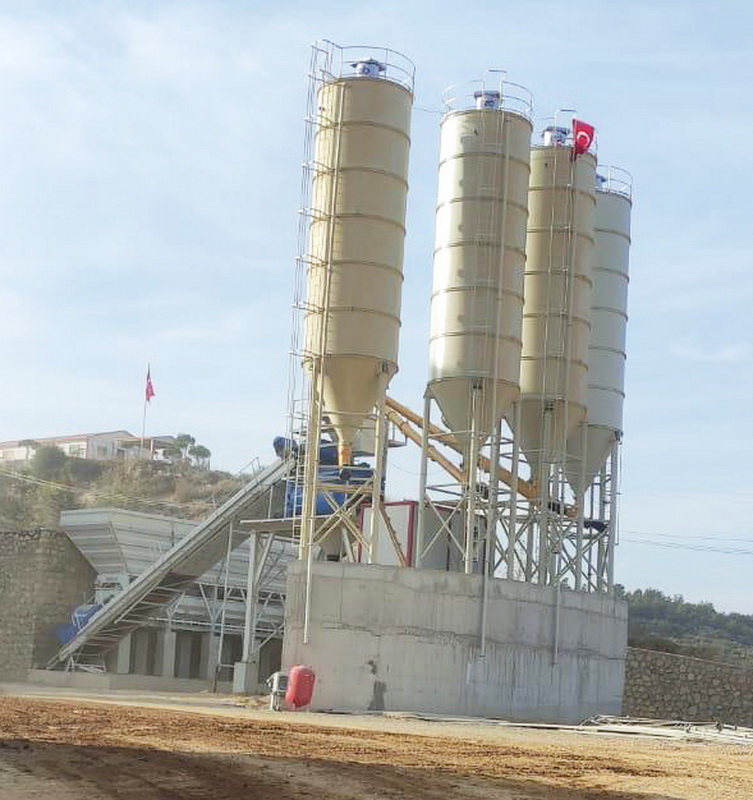

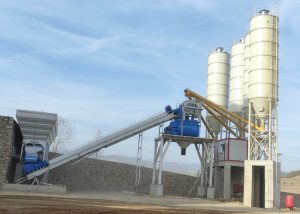

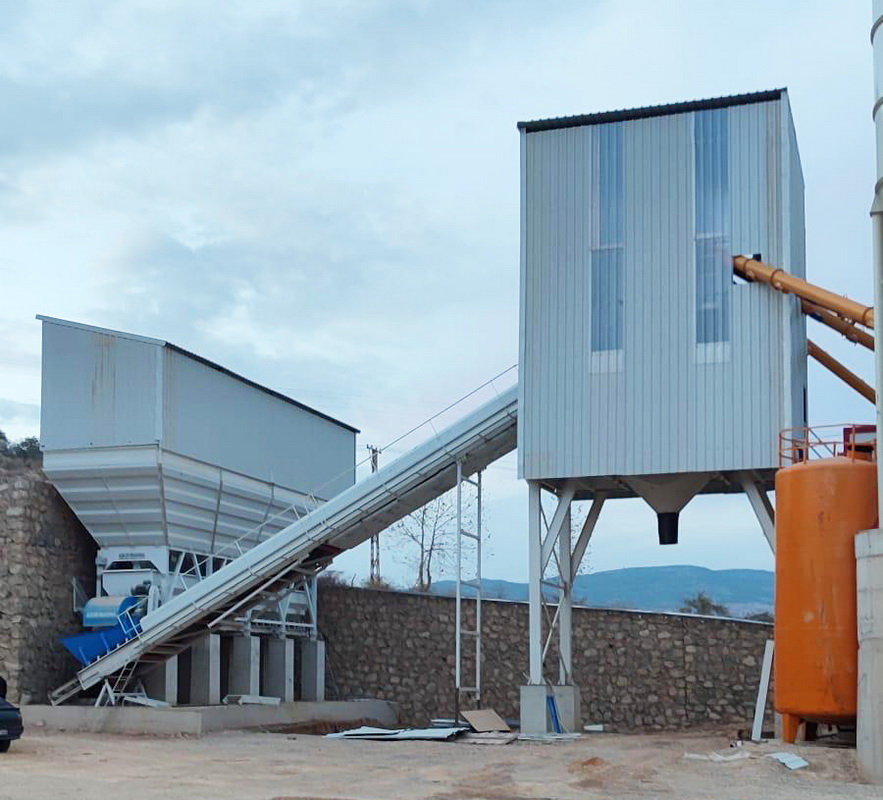

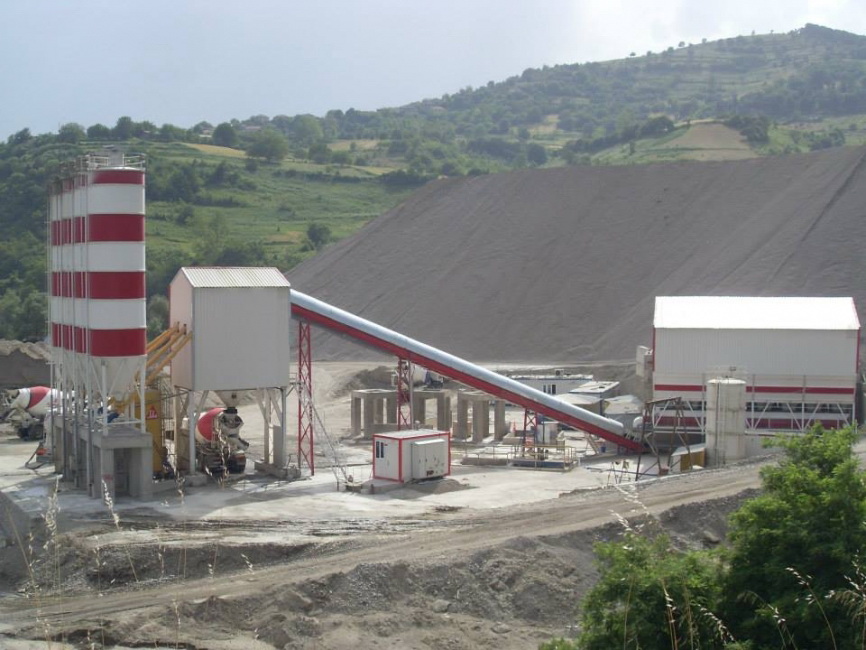

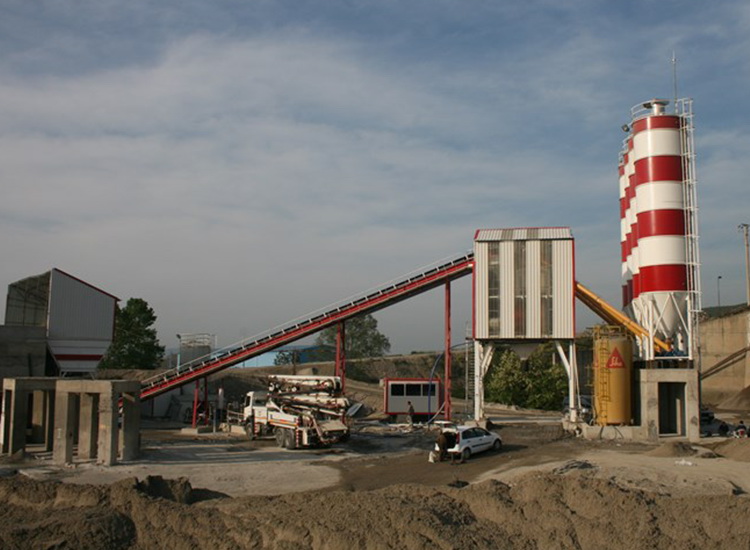

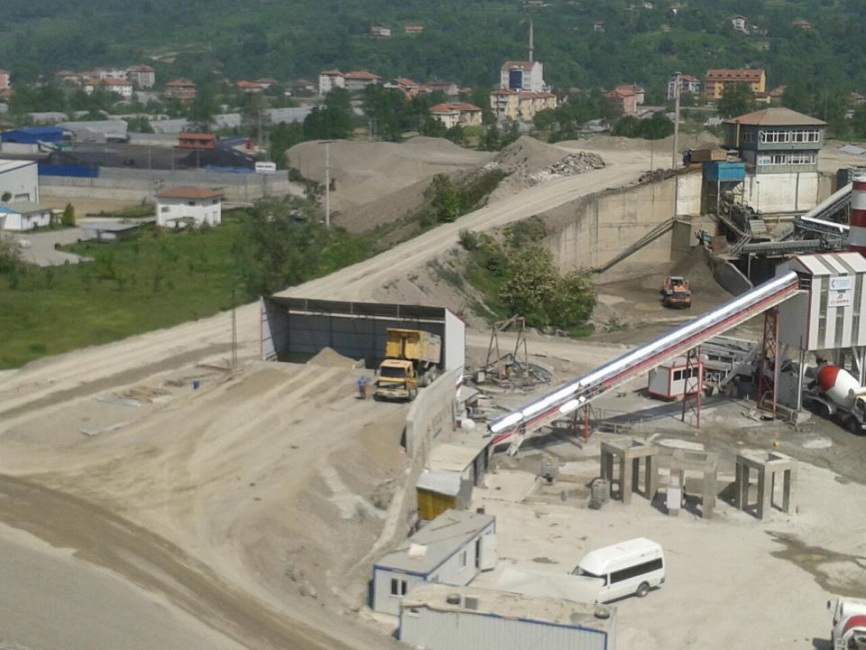

ASURMAK STN-160 m3
ASURMAK STN-160 m³ is a powerful concrete batching plant model in the stationary concrete batching plant category, preferred for reliable and efficient concrete production in high-capacity projects.
CE Certified
2-Year Warranty
24/7 Technical Support
Fast Delivery
| ASURMAK STN-160 STATIONARY CONCRETE BATCHING PLANT — 160 m³/hour | ||
|---|---|---|
| FEATURES | VALUES | UNIT |
| Concrete Production Capacity | 160 | m³/hour |
| Mixer Type | Twin Shaft | Twin Shaft |
| Mixer Mixing Time | 30 | Seconds |
| Mixer Compacted Concrete Capacity | 4 | m³ |
| Mixer Dry Volume | 6.5 | m³ |
| Mixer Motor Power | 2×75 | kW |
| Number of Aggregate Compartments | 4 | Compartments |
| Aggregate Bin Capacity | 4×40 | m³ |
| Aggregate Weighing Conveyor | 1200×32000 | mm |
| Aggregate Weighing Capacity | 8,800 | kg |
| Cement Weighing Capacity | 2,000 | kg |
| Water Weighing Capacity | 1,000 | Lt |
| Additive Weighing Capacity | 2×50 | kg |
| Total Electrical Power | 256 | kW |
| Cement Silo | 100 | Ton |
| Cement Screw Conveyor | 323 | mm |
